• Pin Bearings


    Pin bearing transfers horizontal force along any direction in the horizontal plane & allows rotation along any axis in horizontal plane. Pin bearings generally do not transfer any vertical load.

    Bridge Construction

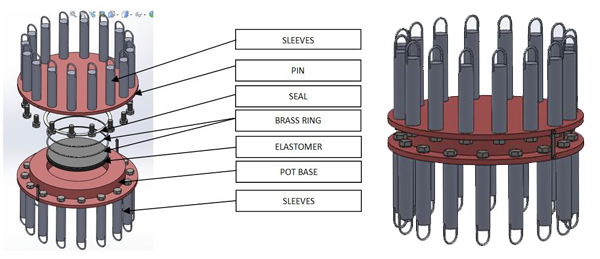

    Pin Bearings
    Pin Bearings
    Pin Bearings

    • Allowable Concrete Pressure at Bearing top and Bottom - 20MPA
    • Rotation 0.01 Radian Max.

    Pin Bearings Loadchart

    Note:
    All the dimensions are in mm dimensions given in the table are indicative. Design & dimensions may be modified by SBPL without prior notice.
