• Pot PTFE Bearings

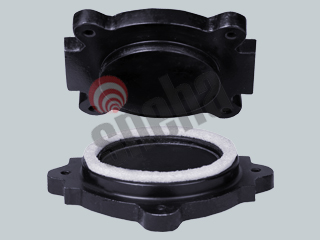

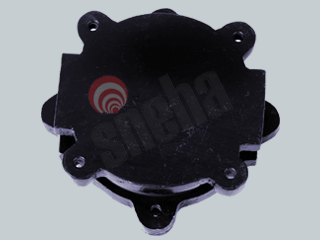

    POT PTFE BEARING is a bearing which carries vertical load by compression on an elastomeric disc confined in a steel cylinder and which accommodates rotations by deformations of the disc. The elastomer under a triaxial pressure offers low resistance to deformation but high vertical stiffness. POT PTFE Bearings are capable of bearing vertical load, horizontal forces and allows movement as well as rotation alongany horizontal axis. These type of bearings are in huge demand for road, bridge, auditoriums, skywalks etc.

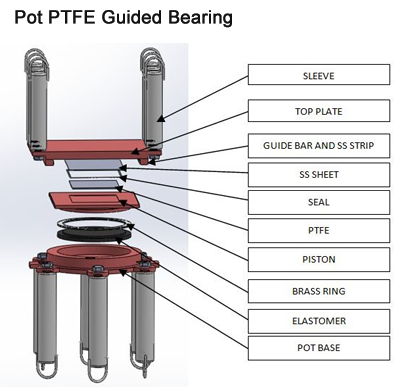

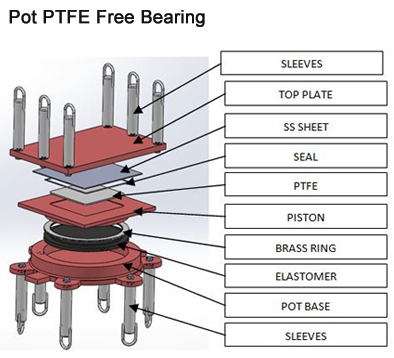

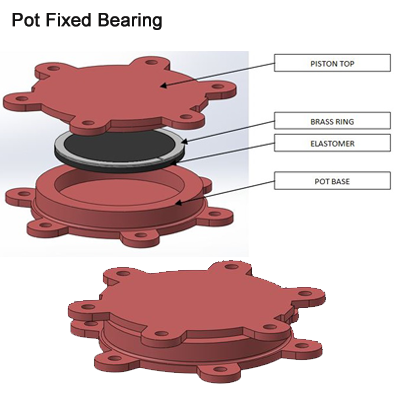

    TYPE POT PTFE Free Bearing POT PTFE Guided Bearing POT Fixed Bearing
    Load Bearing Yes Yes Yes
    Movement In Both Direction Only In One Direction No
    Rotation Yes Yes Yes


     Pot PTFE  Bearings
     Pot PTFE  Bearings

    Bridge Construction
