• Metalic Guided Bearings

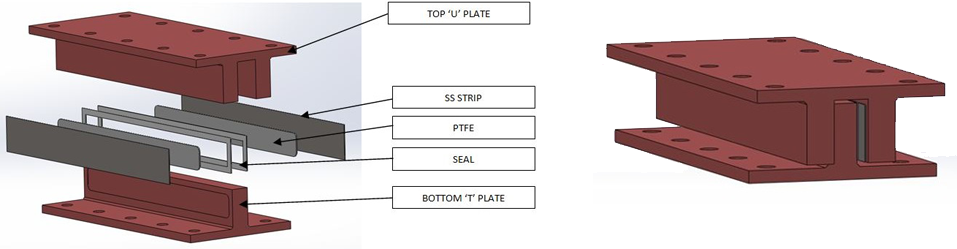

    Metallic Guided bearing transfers horizontal force and is capable of allowing movement in one direction & allows rotation only about an axis perpendicular to the plane of sliding. Metallic Guided bearings generally do not transfer any vertical load.

    Metalic Guided Bearings
    Metalic Guided Bearings
    Metalic Guided Bearings


    • Allowable Concrete Pressure at Bearing top and Bottom - 20MPA
    • Rotation 0.01 Radian Max.

    MAX HORIZONTAL FORCE (MT)

    LB

    WB

    LT

    WT

    HT

    D

    N

    A

    B

    C

    D

    E

    F

    SL

    SD

    25 215 235 355 235 150 22 4 160 N.A. 140 140 280 280 200 40
    50 405 245 540 245 150 22 8 170 N.A. 330 110 465 155 200 40
    75 580 265 715 265 150 26 8 180 N.A. 495 165 630 210 230 50
    100 625 285 785 285 160 26 10 200 N.A. 540 135 700 175 230 50
    150 865 305 985 305 175 26 14 220 N.A. 780 130 900 150 230 50
    200 885 595 1025 595 195 26 20 260 510 800 200 940 235 230 50
    250 985 615 1110 615 205 26 24 280 530 900 180 1025 205 230 50
    300 865 675 985 675 220 26 28 340 590 780 130 900 150 230 50
    350 995 700 1065 700 250 26 32 360 610 910 130 980 140 230 50
    400 930 805 1080 805 270 32 24 400 700 825 165 975 195 300 60
    450 1010 845 1070 845 290 32 28 440 740 900 150 960 160 300 60
    500 1040 845 1185 845 290 32 28 440 740 930 155 1080 180 300 60
    Bridge Construction


    Note:
    All the dimensions are in mm dimensions given in the table are indicative. Design & dimensions may be modified by SBPL without prior notice.
